ZN/ZNW Series Vibrator Poker Diameter and length and customization

Short Description:

DYNAMIC concrete vibrator series products, bar head diameter 20-80mm and length 2-18m are optional.

Long service life, high vibration frequency, large vibration force and high cost performance.

The power source can be equipped with Honda/Robin/Briggs Stratton/Kohler/Longxin and other gasoline engines and 100-400V motors.

Send email to us

Product Detail

Product Tags

Product Description

Model	ZN/ZNM28 ZN/ZNW32 ZN/ZNW38 ZN/ZNW45 ZN/ZNW50 ZN/ZNW60 ZN70
Diameter	28/32/38/45/50/60/68
Length	463/430/492/585/545/550/452 (mm)
Vibration Frequency	210/210/205/200/200/200/200 (hz)
Amplitude	1.4/0.8/1.7/1.2/2.2/2.5/2.5 (mm)
Hose Diameter	28/30/32/32/32/36/36 (mm)
Weight	16/17/18/19/20/21/19 (kg)
Flexible shaft diameter	8/8/10/12/12/13/13 (mm)

the machines may be upgraded without further notice,subject to the actual machines.

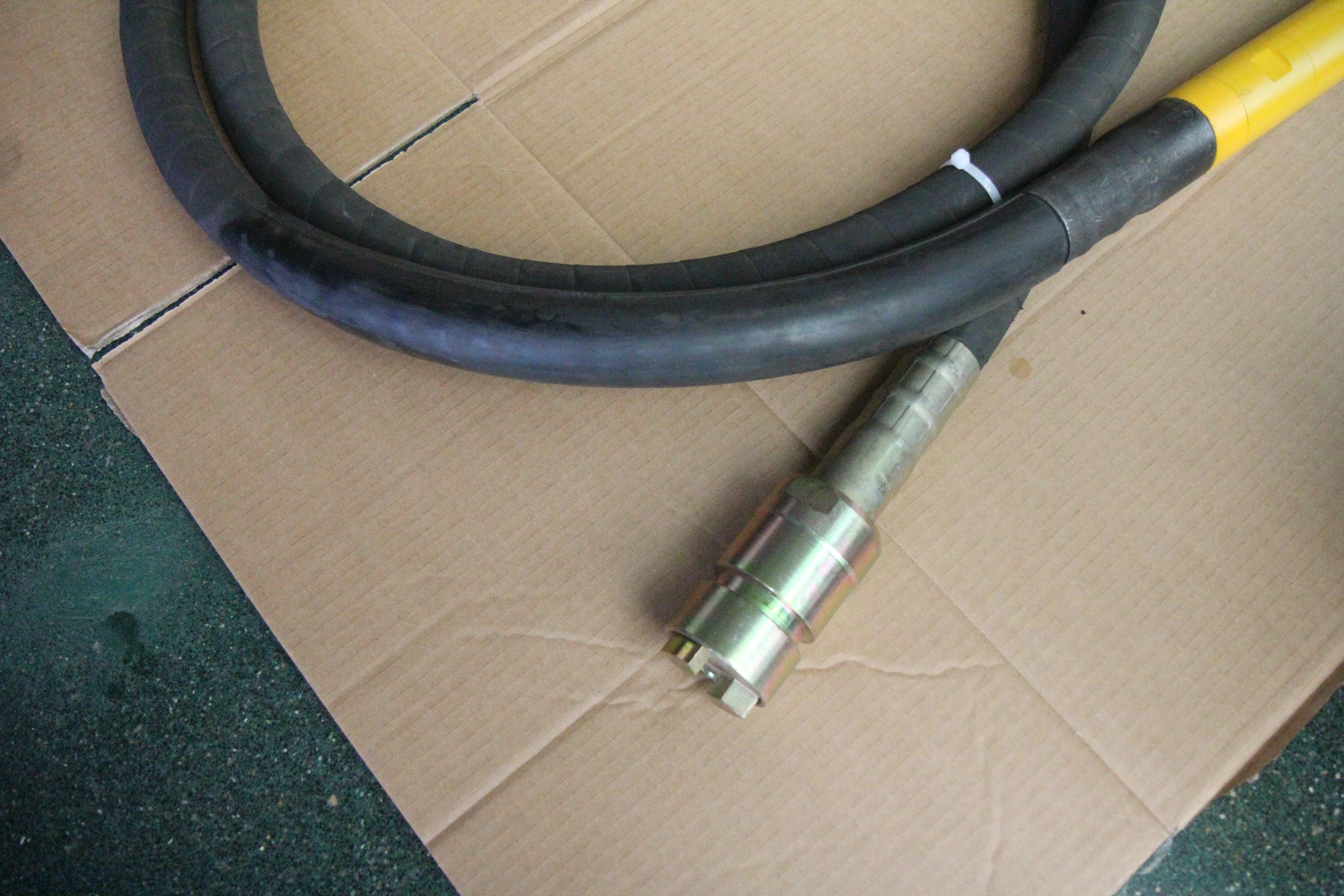

Detailed Images

Features

DYNAMIC concrete vibrator series products, bar head diameter 20-80mm and length 2-18m are optional.

Long service life, high vibration frequency, large vibration force and high cost performance.

The power source can be equipped with Honda/Robin/Briggs Stratton/Kohler/Longxin and other gasoline engines and 100-400V motors.

Packaging & Shipping

1. Standard seaworthy packing suitable for long-distance transportation.
2. The transportation packing of cardboard box.
3. All of the production are inspected carefully one by one by QC before delivery.

Lead Time
Quantity(pieces)	1 - 1	2 - 3	>3
Est.time (days)	7	13	To be negotiated

Company Information

Founded in the year 1983, Shanghai Jiezhou Engineering & Mechanism Co., Ltd. (hereinafter referred to as DYNAMIC ) is located at Shanghai Comprehensive Industrial Zone, China.
DYNAMIC is a professional enterprise that combines R&D, production and sales in one.it owns advanced production equipment.

We are expert in concrete machines, asphalt and soil compaction machines, including power trowels, tamping rammers, plate compactors, concrete cutters, concrete vibrator and so on. Based on humanism design, our products feature good appearance, reliable quality and stable performance which make you feel comfortable and convenient during the operation. They have been certified by ISO9001 Quality System and CE Safety System.

With rich technical force, perfect manufacturing facilities and production process, and strict quality control, we can provide our customers at home and aboard with high quality and reliable products.All of our products have good quality and welcomed by international customers spread from U.S., EU, the Middle East and Southeast Asia.

You are welcomed to join us and gain achievement together!
