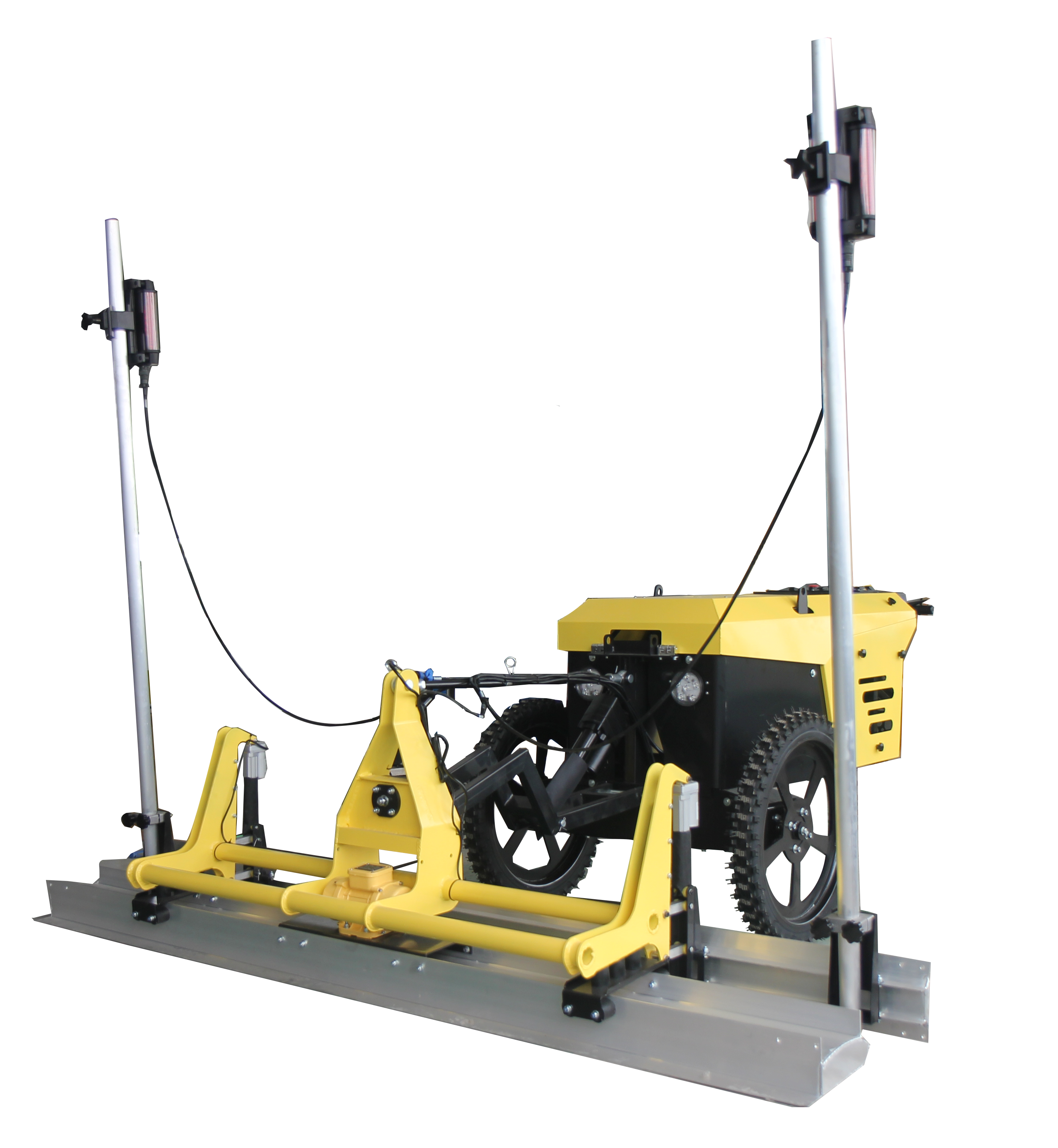

LS -325 Walk-Behind concrete Laser Screed

Short Description:

The Laser Screed is used in large area concrete construction, such as the modern industrial workshop, the large market, storage, airport, the plaza, and so on. The Laser Screed can satisfy the construction requirements of large area and high planeness and levelness.

LS-325 provides a convenient, efficient and cost-effective solution to fully meet your floor construction needs. The device is quick to set up, easy to operate and very easy to use. The size and weight of the equipment itself are reasonable in design, convenient for transportation and suitable for various working conditions such as ground, floor and underground parking garage.

企业微信截图_16980516017562


Product Detail

Product Tags

Product video

1. Laser Emitter, can auto control the flat surface and two-way slope Imported servo drive system, smooth running, precise timing, strong overload ability.

2. Dynamic brand/Topcon laser system, with high working precision and reliability.

3. Hybrid drive, more selection with more economical cost.

4. Use precision laser technology, closed loop control technology and highly sophisticated integrated hydraulic system, and the microcomputer automatic control.

5.High-precision automatic control system independently developed by Dynamic with good effect

6.operation panel Convenient and simple

7.Aluminum-magnesium alloy leveling head Durable standard 2.5 meters optional 3 meters

8.High frequency vibration motor Good pulping effect

Specification

Product Name    LASER SCREED
MODEL    LS-325
Weight   293 (kg)
Size   L2748xW2900xH2044 (mm)
Flattening head width    2500 (mm)
Paving thickness    30-300 (mm)
Walking speed    0-6 (km/h)
Walking drive     Servo motor drive
Exciting force   1000 (N)
Engine    Honda GP200
Power   5.5  (Hp)
Laser system    Dynamic Digital dual slope remote control transmitter
Laser system control mode    Laser scanning + high precision servo push rod
Laser system control effect    plane、slope

the machines may be upgraded without further notice, subject to the actual machines.

Product Display

LS-325-2
1668152464317
mmexport1698027983824(1)
mmexport1698027977993(1)
LS-325-1
1668152703506
mmexport1698029913235(1)
mmexport1698029918440(1)
8
1
IMG_5996
IMG_6000
IMG_5997
IMG_5999
IMG_5998
IMG_5994
IMG_5993

Packaging & Shipping

Lead Time
Quantity(pieces) 1 - 1 2 - 3 4 - 10 >10
Est. time (days) 3 15 30 To be negotiated
