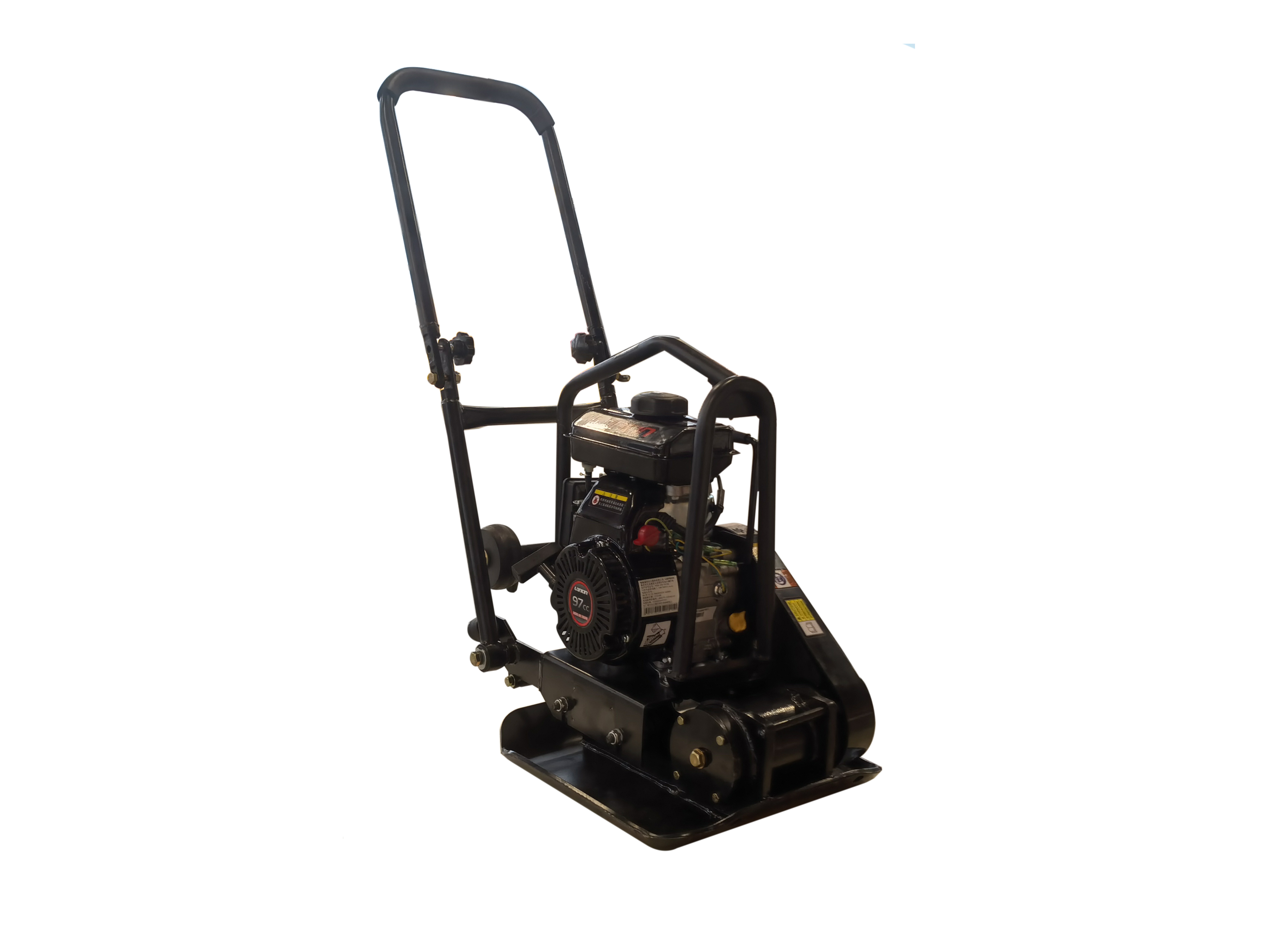

HZR-60 Loncin gasoline engine 51kg small plate compactor

Short Description:

Dynamic plate compactor series could be used in the narrow place of the wall, roadside, foundation structure also can be used for compaction asphalt and concrete.

HZR-60It is our lightest plate compactor with a dead weight of only 51 kg. The eccentric block vibration mode is adopted, and the vibration force reaches 10 kN. It is the best choice for foundation compaction operation after being tested by the market.

Send email to us

Product Detail

Product Tags

Product Video

Product Paramenters

Model	HZR-60
Weight	51 (kg)
Dimension	L785W350H920 (mm)
Plate size	L440xW350 (mm)
Centrifugal force	8 (kn)
Type	152F
powet	1.1 (kw)
forward speed	20-23 (m/min)
Engine	Four-stroke air-cooled gasoline engine
fuel tank capacity	1.2 (L)
Power	1.1(kw/hp)

The machines may be upgraded without further notice, subject to the actual machines.

Features

1.anti-vibration handle for more comfortable operation

2.central lifting device easy to load ,unload and transport

3.integral belt cover protection security

4.One-piece vibration box Reliable and stable

5.Central lifting device Easy to load,unload and transport

6.Cast iron tamper plate strong and durable

After Sales Service

Packaging & Shipping

The model HZR-80 is packed by plywood per piece.Concret way of package and shipping can be negotiated.
