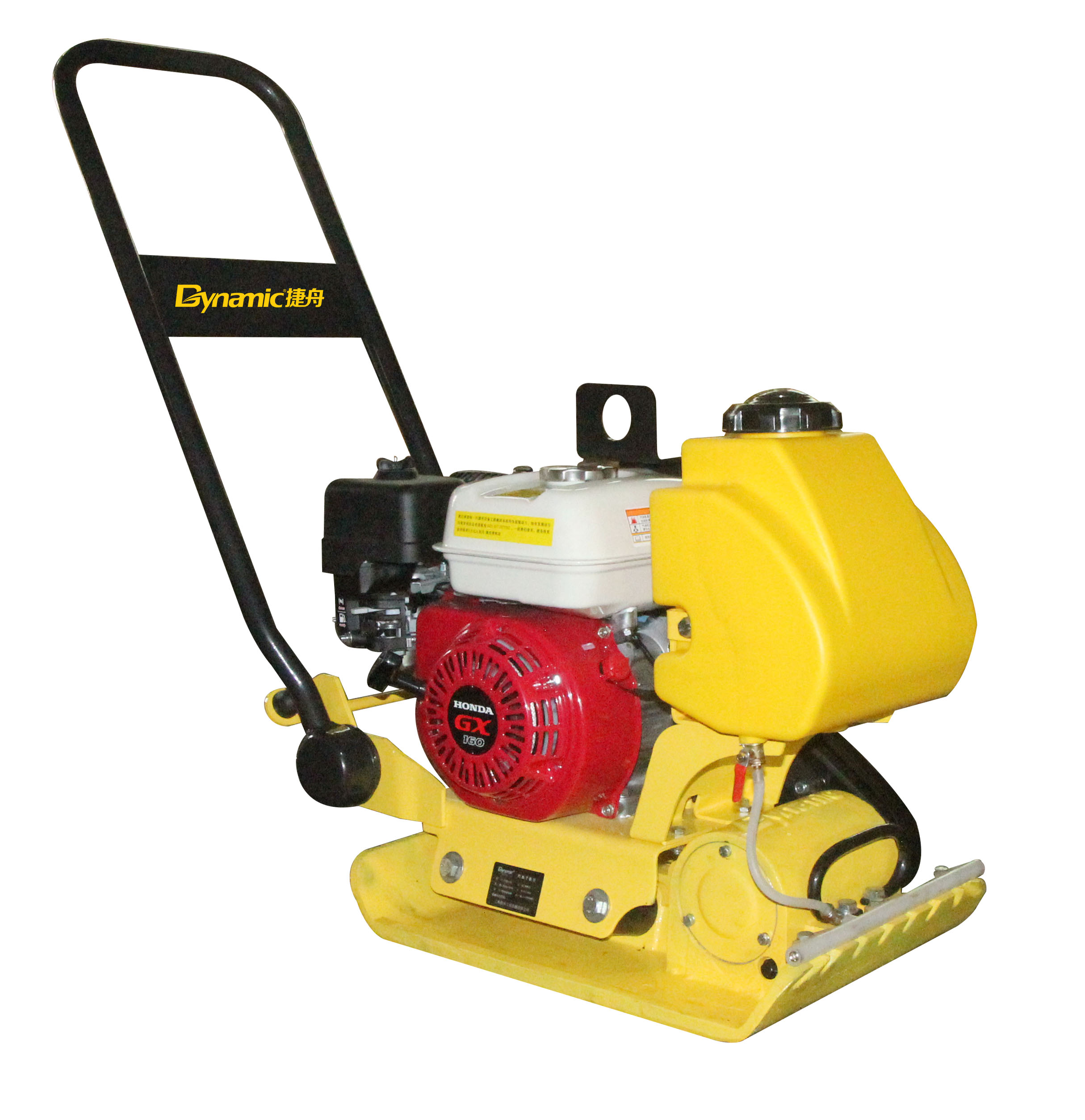

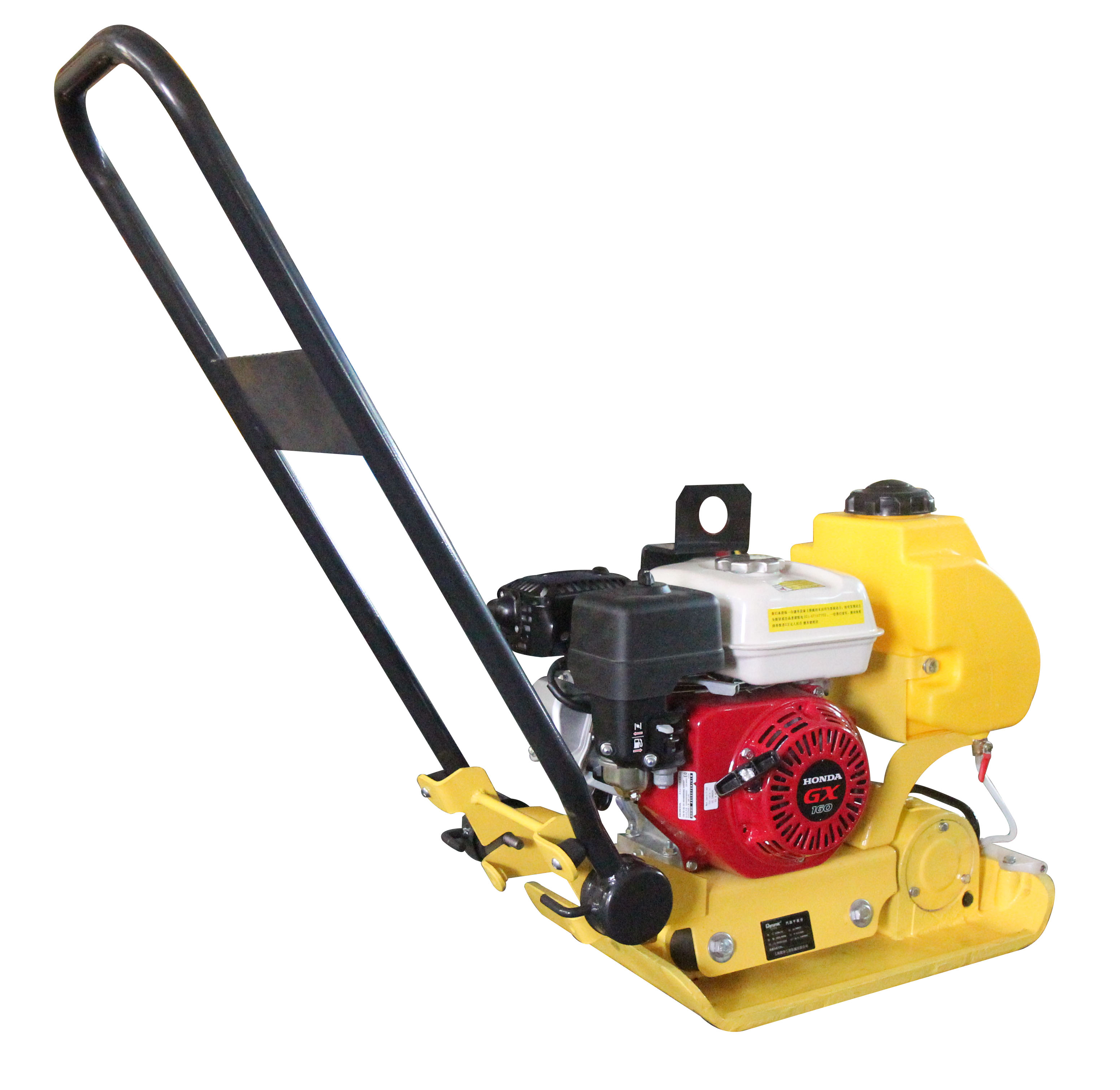

HZR-70 Plate compactor with water tank damping pad traveling wheel can be selected

Short Description:

The HZR-70 plate compactor is powered by Honda GX-160 engine.
The ramming capacity of 10 kilonewtons can be used in various soil, asphalt, floor tiles, gardens and other environments.
The integral base plate of nodular cast iron is solid and durable.
There are also water tank, damping pad, walking wheel and other accessories to choose from.

企业微信截图_16678746761232


Product Detail

Product Tags

Product Video

Product Paramenters

Model  HZR-70
Weight   67 (kg)
Dimension  L1070*W350*H880 (mm)
Plate size   L535*W350 (mm)
Centrifugal force   10 (kn)
Vibration frequency  5550/93 (hz)
Forward travel   20-23 (m/min)
Engine  Four-stroke air-cooled gasoline rngine
Type  Honda GX160
Max. output   4.0/ 5.5 ( kw/hp)
Fuel Tank liter  3.6 (L)

the machines may be upgraded without further notice, subject to the actual machines.

Product Description

1.DYNAMIC wacker mini garbage/roll plate compactor with Honda GX160

This machine are ideal for curbs, gutters, around tanks, forms, columns, footings, guard railings, drainage ditches, gas and sewer works and building construction. The asphalt models are suitable for hot or cold asphalt applications in confined areas.

2.Optimally suited for a variety of compaction applications due to high travel speeds and ease of maneuverability.

3.Guide handle with patented vibration dampening increase operator comfort and reduces fatigue.

4.The large capacity water tank and the wide filler opening improve productivity.

5.Tough ductile iron baseplate is extremely durable even under extremely conditions and provides for long service. Optional wheel kit offer easier moving and transport.

1
7
4
企业微信截图_16678746761232

Product Details

HZR-70 (7)
HZR-70 (8)
HZR-70 (9)

Packaging & Shipping

Lead Time
Quantity(pieces) 1 - 1 2 - 3 4 - 10 >10
Est. time (days) 3 15 30 To be negotiated
新网站 运输和公司

Company Information

Founded in the year 1983, Shanghai Jiezhou Engineering & Mechanism Co., Ltd. (hereinafter referred to as DYNAMIC ) is located at Shanghai Comprehensive Industrial Zone, China, covering an area of 15,000 sqm. With registered capital amounting to USD 11.2 million, it owns advanced production equipment and excellent employees 60% of whom obtained college degree or above. DYNAMIC is a professional enterprise that combines R&D, production and sales in one.

We are expert in concrete machines, asphalt and soil compaction machines, including power trowels, tamping rammers, plate compactors, concrete cutters, concrete vibrator and so on. Based on humanism design, our products feature good appearance, reliable quality and stable performance which make you feel comfortable and convenient during the operation. They have been certified by ISO9001 Quality System and CE Safety System.

With rich technical force, perfect manufacturing facilities and production process, and strict quality control, we can provide our customers at home and aboard with high quality and reliable products.All of our products have good quality and welcomed by international customers spread from U.S., EU, the Middle East and Southeast Asia.

You are welcomed to join us and gain achievement together!
