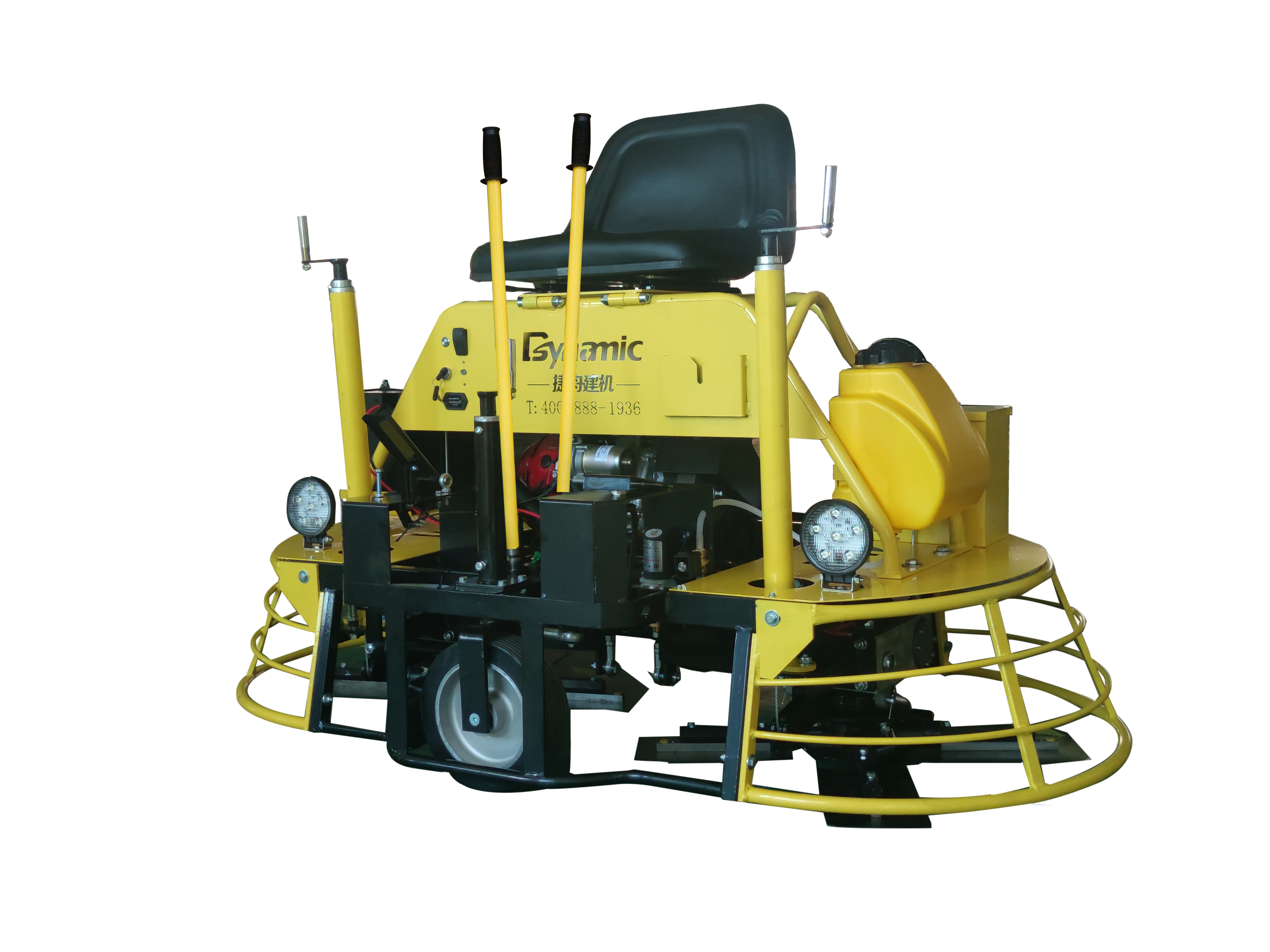

QUM-65 Two working plates 800mm/30in Gasoline engine Ride-on trowel

Short Description:

Ride-on power trowel can be used in surface finishing of concrete road, terrace, boatyard, airport and floor etc.

1. High working efficiency, one machine driving type is equivalent to six walking type

2. Flexible operation. The size of the machine is much smaller than that of 1m and 1.2m, and it can adapt to work in a narrow area

3. The speed of the working surface is fast, and the working plate turns 160 per minute, so the light collection effect is better

4. Honda gasoline engine, simple maintenance, stable and reliable performance

5. Heavy load turbine box with large gear can effectively dissipate heat and prevent high temperature oil leakage

Send email to us

Product Detail

Product Tags

Product Video

Power trowel 80 Install wheels video

Product Paramenters

Model	QUM-65
Weight	301 (kg)
Dimension	L1710W940H1150 (mm)
Working dimension	L1570*W730 (mm)
Rotating Speed	140 (rpm)
Power	Air-cooled,4-cycle,Gasoline
Model	Honda GX390
Max output	9.6/13 (kw/hp)
Fuel tank	6.5 (L)

the machines may be upgraded without further notice,subject to the actual machines.

Detailed Images

Features

1. Variable clutch provides proper torque and speed range to match concrete conditions.

2. Ride-on operation reduces intensity of labor and increase efficiency of work.

3. With dual rotor, heavier weight and much better compaction, the efficiency is higher than walk-behind power trowel.

4. Safety switch can shut off engine at once to ensure security of operator.

5. Low barycenter design provides stable operation.

6.Efficient sprinkler no fear of rapid hardening of concrete

7.LED lighting illuminate a wide range not afraid of night construction

Packaging & Shipping

1. Standard seaworthy packing suitable for long-distance transportation.
2. The transportation packing of plywood case.
3. All of the production are inspected carefully one by one by QC before delivery.

Lead Time
Quantity(pieces)	1 - 1	2 - 3	>3
Est.time (days)	10	20	To be negotiated
