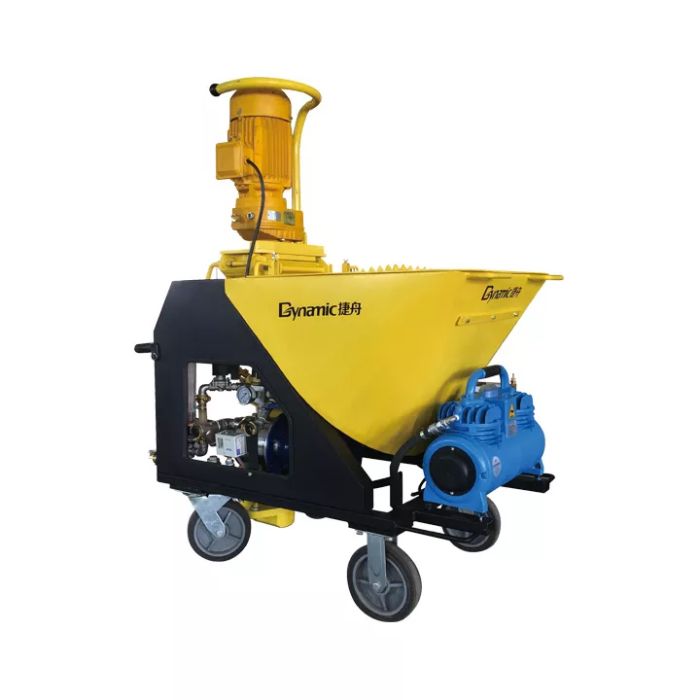

DG-5C High-power Self stirring Mortar Spraying Machine
Short Description:
DYNAMIC DG-5C adopts high-frequency motor with power of 4 kW. Stable and reliable performance. The voltage is 380 V, and 100-400 V can be customized. In addition, gasoline and diesel engines are optional.
The material bin has a capacity of 45 liters, and the maximum particle size is 3 mm. It can quickly mix mortar, putty powder and other materials.
It has the advantages of uniform mixing of materials, long conveying distance, high vertical height and large workload.
| Model | DG-5C |
| Weight | 320 (kg) |
| Dimension | L1280*W650*H1530 (mm) |
| Power Supply | 380/220 (v) |
| Mortor Power | 4 (kW) |
| particle size | 3 (mm) |
| horizontal transmission distance | 25 (m) |
| Vertical transmission distance | 6 (m) |
| hopper capacity | 45 (L) |
1. Small volume, convenient to on-site handling, low cost of accessories and easy maintenance.
2. Connections between gun and feeding can rotate and easy operation.
3. The bonding degree is high, strong robustness, and can avoid empty drum and rework phenomenon after spraying.
1. Standard seaworthy packing suitable for long-distance transportation.
2. The transportation packing of plywood case.
3. All of the production are inspected carefully one by one by QC before delivery.
| Lead Time | |||
| Quantity(pieces) | 1 - 1 | 2 - 3 | >3 |
| Est.time (days) | 7 | 13 | To be negotiated |
Founded in the year 1983, Shanghai Jiezhou Engineering & Mechanism Co., Ltd. (hereinafter referred to as DYNAMIC ) is located at Shanghai Comprehensive Industrial Zone, China, covering an area of 15,000 sqm. With registered capital amounting to USD 11.2 million, it owns advanced production equipment and excellent employees 60% of whom obtained college degree or above. DYNAMIC is a professional enterprise that combines R&D, production and sales in one.
We are expert in concrete machines, asphalt and soil compaction machines, including power trowels, tamping rammers, plate compactors, concrete cutters, concrete vibrator and so on. Based on humanism design, our products feature good appearance, reliable quality and stable performance which make you feel comfortable and convenient during the operation. They have been certified by ISO9001 Quality System and CE Safety System.
With rich technical force, perfect manufacturing facilities and production process, and strict quality control, we can provide our customers at home and aboard with high quality and reliable products.All of our products have good quality and welcomed by international customers spread from U.S., EU, the Middle East and Southeast Asia.
You are welcomed to join us and gain achievement together!
Q1: Are you manufacture or trade company?
A: Of course, we are manufacturer and we have our own factory. We can offer you best products and best services.
Q2: How about your delivery time?
A: Generally, it will take 3 days after payment arrived.
Q3: What is your terms of payment?
A: T/T, L/C, MasterCard, Western Union.
Q4: What is your packaging?
A: We package in Plywood case.
Q5: Do you machine can be custom-made?
A: Yes, we can design and produce according to client's requirements.
